BMW MGU ATM2 Dkombi4 ECU Validation Service per VIN

BMW MGU ATM2 Dkombi4
ECU Validation Service per VIN

BMW
ECU Validation Service MGU ATM2 Dkombi4 order per VIN and imported
by BMW
ISTA or Esys.With
the introduction of the new Headunit HU-H3 (MGU
Media Graphics Unit), we have a new way for protection mechanisms
against tampering.If one or more of the following components MGU, TCB
Telematic Communication Box (ATM-02), RSE Rear Seat Entertainment, or
KOMBISP18 instrument cluster needs to be replaced the secure connection
between them must be re-established. To re-establish the connection, an
electronic certificate must be created from the BMW backend and imported into
the Vehicle. How to apply the ECU Validation
certificates?

1. Leave us the VIN Vehicle
   Identification No. when order
2. In 30mins to 2 working
   hours, we will send you the file via Email
3. Remote
   support is available as per request or you can follow the below
   steps by ISTA BMW to import the
   certificates.

Modules require ECU
validation after replacement

Step-by-Step
Guidance for BMW ECU Validation Service By ISTA BMW

1. 1. Go
      to “vehicle management” =>  “Control unit exchange”
   2. Select the exchanged control unit in the “After ” tab
      and then calculate the measures plan. Then ISTA will automatically include
      the control unit validation in the measures plan.
   3. If
      ISTA cannot carry out automatic validation, a warning about the absence of
      control unit validation is displayed.
   4. By clicking on
      the “Next” button, ISTA generates the required
      ValidationRequest_VIN_xxx.json file and opens a file dialogue to save it. The
      file needs to be stored and uploaded via DCSnet later.
   5. ISTA displays a note confirming that the file was successfully
      saved. At this point, you can exit the process using the “Cancel”
      button. After processing the measures plan, the session can be
      closed.

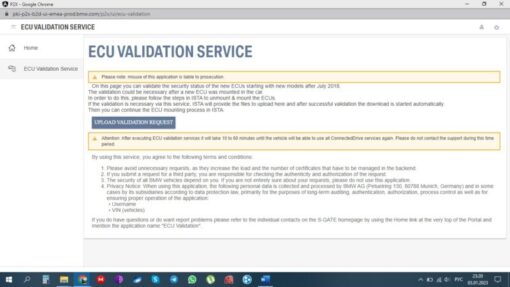

   6. Open DCSnet and select “ECU Validation Service”
      under “Service”. You can order the ECU
      validation service through us per VIN.If the ECU
      Validation Service Menu is not showing up, please check your Access Roles in
      DEMS. If the ECU validation Service Role is missing, please contact your DEMS
      Administrator for getting access to it.
   7. Upload the
      previously generated and downloaded ValidationRequest_VIN17_xxx.json
      file
   8. The System checks the file, and after a few
      seconds, a newValidationRequest_VIN17_xxx_response.json file will be offered
      for downloading. This issubsequently required by ISTA. Start a new ISTA
      session
   9.  In order to import
      the JSON file, select “ECU Validation” in the “Additional
      Software” tab.
   10. In order to import the validated
       file, select “Import control unit validation file manually” and
       confirm with “OK”.
   11. Select the file
       ValidationRequest_VIN17_xxx_response.json in the file dialogue and confirm
       with “Continue”. (the file will be supplied by us if you ordered
       the ECU
       Validation Service from team autosvs.com)
   12. The
       file is written into the vehicle and checked.

Ecu validation
service Summary:With the introduction of the new Headunit
HU-H3 (MGU Media Graphics Unit), there is a new protection mechanism against
tampering. If one or more of the following components needs to be replaced,
the secure connection between them must be re-established:

• MGU TCB Telematic Communication Box (ATM-02);
• RSE Rear Seat Entertainment;
• KOMBISP18
  instrument cluster.
