Enable Assisted Driving View for BMW G20: A Technician's Guide

Modern BMWs like the G20 3 Series contain advanced driver assistance systems (ADAS) with capabilities often dormant from the factory. One such feature is Assisted Driving View – a dynamic visualization system that enhances driver situational awareness. For technicians and skilled enthusiasts, activating this feature requires precise BMW coding using professional tools like the SmartBimmer Master Tool. This guide addresses the common challenge of unlocking factory-installed ADAS features that aren't enabled by default due to regional or trim-level restrictions.

Technical Implementation of Assisted Driving View

System Architecture and Data Flow

Assisted Driving View integrates data from multiple control units. The KAFAS (camera system) processes lane and object detection, while the DSC, EPS, and radar sensors provide steering angle, vehicle dynamics, and proximity data. This information converges at the Head Unit (HU-H4) and Instrument Cluster (BK2) for visualization. Activation requires modifications to the Vehicle Order (VO) in the FA (vehicle master file) and subsequent NCD 2.0 coding of dependent modules.

Required Hardware and Software

Critical tools for successful coding:

• BMW ICOM NEXT A VCI – Essential for DOIP (Diagnostics over Internet Protocol) communication with G-series modules
• OBD2 to Ethernet Cable or BMW ENET WiFi Adapter for initial vehicle access
• Industrial-grade battery maintainer (minimum 70A capacity)
• E-Sys Launcher Premium with current PSdZData files (v.4.40.30+)
• ISTA Online for pre/post diagnostic scans and fault clearing

Step-by-Step Activation Process

1. Preparation: Connect BMW ICOM NEXT A VCI via DOIP. Attach power supply maintaining 13.2V ±0.3V.
2. Vehicle Identification: Read FA using E-Sys. Save the original FA as a backup.
3. FA Modification: Add option code 5AT (Enhanced Driving Assistant) to the FA structure.
4. VO Activation: Write modified FA to the vehicle using the “Activate FA” function.
5. Module Coding: Code Head Unit (HU_H4), Instrument Cluster (DKOMBI2), and SAS (Steering Angle Sensor) modules.

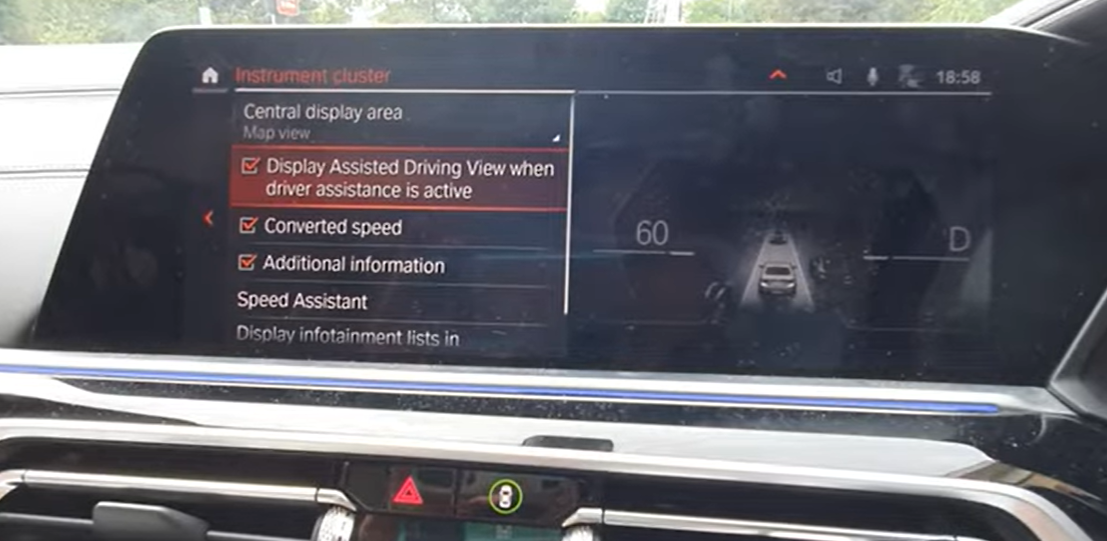

6. Validation: Cycle ignition. Check the instrument cluster for Assisted Driving View under the “Driving Info” submenu.

Common Coding Challenges and Solutions

ECU Communication Timeouts

If modules fail to respond during coding:

• Verify DOIP connection stability – use direct Ethernet connection instead of WiFi where possible
• Ensure ICOM NEXT firmware is updated to v4.0.7+
• Disable firewall/antivirus software during coding sessions

Feature Inactivation After Coding

If Assisted Driving View disappears:

• Confirm all dependent ECUs were coded simultaneously
• Check for conflicting coding parameters in HU_H4 (CAFD_00004290)
• Perform SG_RESET on the Head Unit and Instrument Cluster

Essential Hardware: SmartBimmer Master Tool

For reliable coding operations, the SmartBimmer Master Tool provides:

• Pre-configured E-Sys environment with token generator
• Integrated ENET/DOIP interfaces compatible with G20 architecture
• Current PSdZData libraries are compliant with BMW NCD 2.0 standards
• Real-time voltage monitoring during coding procedures

Key Takeaways for Successful Implementation

• Hardware validation is critical – confirm required ADAS sensors are present before coding
• Power stability prevents ECU corruption – never code without a verified power supply
• Backup original FA before modification – creates recovery point for troubleshooting
• Post-coding calibration via ISTA is mandatory for safety system functionality

For complex BMW retrofits and professional-grade tools like the SmartBimmer Master Tool, visit xbimmer.com for technical support and OEM-compatible solutions. Our ICOM NEXT interfaces and coding packages are validated on the latest G-series architectures.
