SmartBimmer Master Tool for BMW Self Coding and Programming 2023

SmartBimmer Master Tool for BMW
Self-Coding and Programming 2023

With this tool, you can handle all the BMW
engineering coding or functional SWT jobs. You do NOT need to have
comprehensive professional knowledge to know how to BMW coding, We will help
you to make everything simple enough to handle, either via USB coding or
OBD2 plug and play. A couple of jobs that are very commonly used: Video in
motion M Laptimer Screen mirroring BMW Apps Apple Carplay Carplay Fullscreen
(2018.11- old version requires to flash/upgrade firmware) full-screen Carplay
RHD Satellite radio

You could enjoy more advanced functional jobs
handling like FSC generation Install VO coding Fix Clear existing SWT/FSCs
Enable of many features Region Unlock Unlock HDD Change HU HWEL, Serial No.,
VIN

SmartBimmer Versions Available:

1. Master Version Unlimited Generation by
   Yourself To create online master accounts, you need the
   following information: Display name, First name, Last name, Email, City,
   Country
2. Client version,
   charged per job per car per activation which all depends on customers'
   demands.

Download
here: Apply the activation codes through your dealers. Enjoy 2 ways
of activation:

USB Self-Coding

1. Copy the
   provided UPDxxxxx.BIN file (ignore the UPD00000.BIN for now) onto an
   available blank USB flash memory stick with the FAT32 file system. The
   recommended flash drive capacity is 2 4 or 8 GB.
2. Turn the ignition on or start the engine of your
   car and plug the USB flash drive into the USB port in the glove box/center
   console.
3. Wait at least 30
   seconds and then unplug the USB flash drive.
4. Reboot the iDrive system by pressing and holding
   the rotary volume button until 15-20 seconds. Alternatively, lock the car for
   10 minutes or use tool 32 from EDIABAS with nbtevo.prg, job
   STEUERGERAETE_RESET.
5. The unit
   will start to boot, show “BMW ConnectedDrive” on the screen, and
   automatically reboot several times. Do not interrupt the process.
6. For ID4 unit: All FSC codes will be
   installed except for Map Code – enter Map code with iDrive or place it on the
   USB drive in a folder named FSC.
7. For the ID5 unit: If iDrive asks for an activation
   code, you can update it by creating a new folder named FSC in the root of the
   blank USB drive and copying the included .fsc file into it. Plug the USB
   drive into the USB socket and start the update.
8. Enjoy your new
   features.

By OBD2

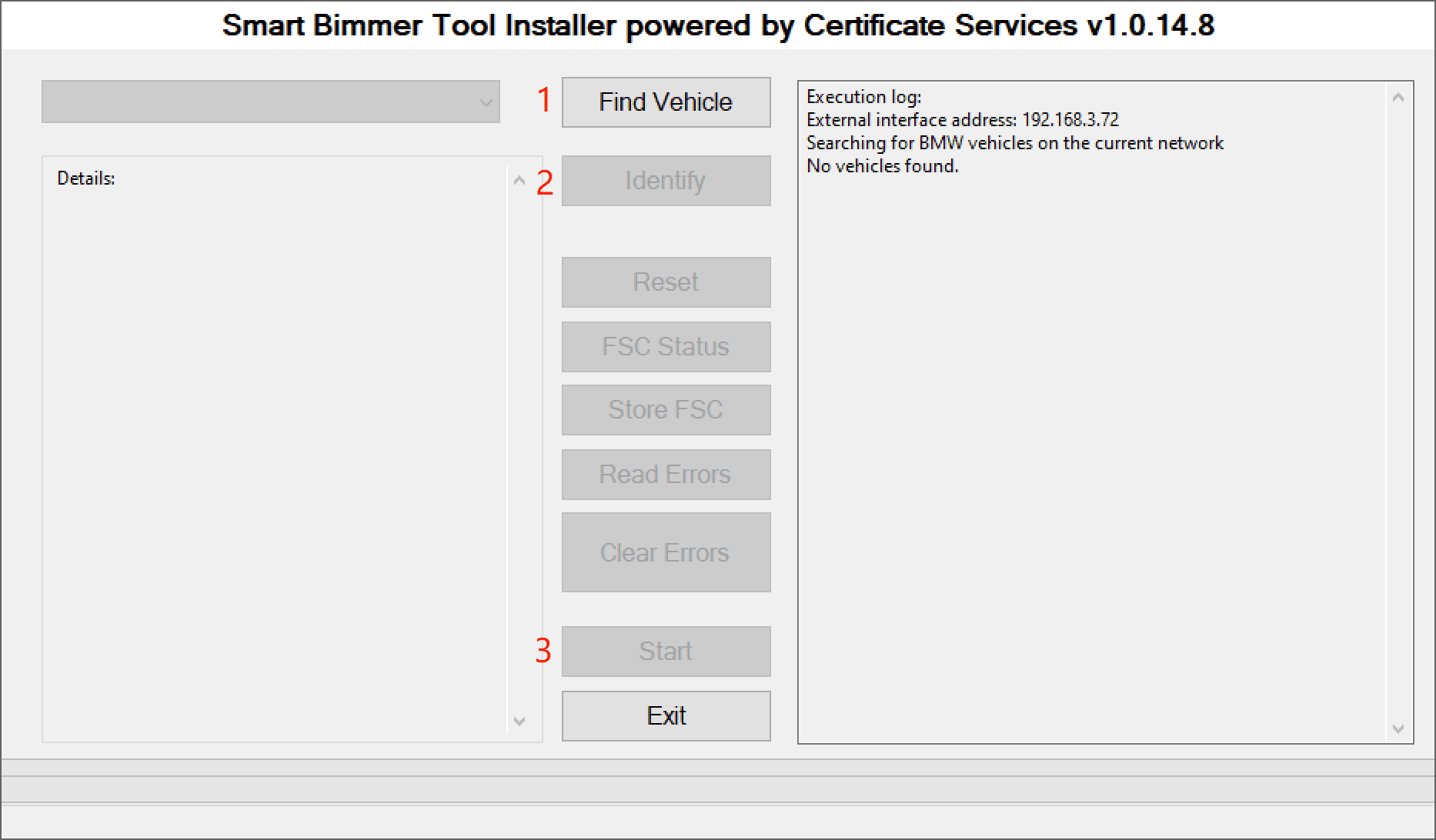

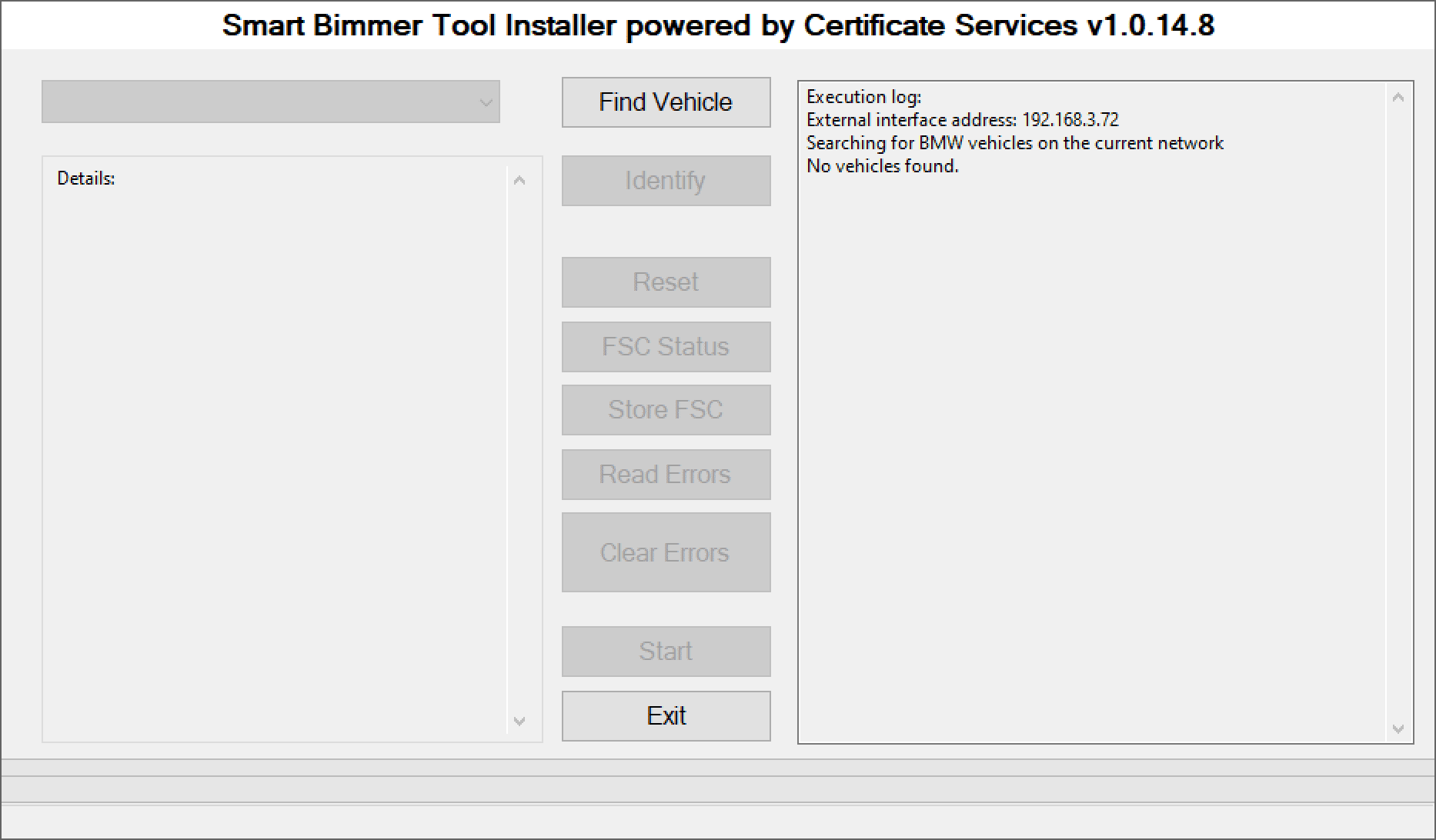

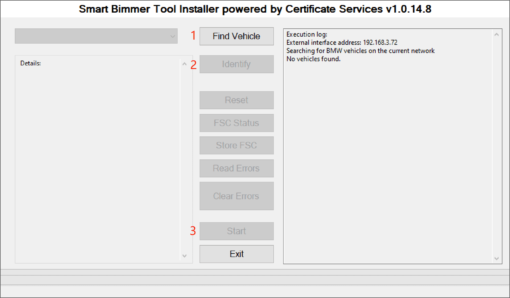

Activation For EVO CarPlay activation, you download this SmartBimmer
Installer 1.0.14.8 anytime you have a car, Tell us the features you
want, and we will send you codes and you pay. To work with
SmartBimmerInstaller via OBD2, our codes do not expire and can be used
multiple times on the same car/head unit, after the first use, the code is
locked to the specific car & head unit;

Software Version Supporting

• We
  support BMW, MiniCooper, Rolls-Royce, and ALL NBT iLevel to 2019-11, and all
  EVO software 2020 versions are currently supported.
• BMW map codes, FSC SWT packs, USB OBD2 coding,
  component protection unlock, VIM, CarPlay, region unlock for NBT EVO,
  EntryEVO, and EntryNav2 are the latest
  updates.

Global Support

FSC MAP
CODE & FSC Standalone
Files

BY REGION
LIST

• 00A4 China/Hong
  Kong/Macau
• 00A5
  Taiwan
• 00A6 Korea
• 00A7 Japan
• 00A8 North America
• 00A9 Europe
• 00AA Australia/New Zealand
• 00AB Middle East
• 00AC North Africa
• 00AD South Africa
• 00AE Southeast Asia
• 00AF South America
• 00B0 India
• 00B1 Israel
• 00CA Turkey
• 00CD Argentina
• 006F
  – Satellite Tuner (US market)
• 009C – BMW Apps
• 009E – iSpeech
• 009F – TTS
• 00A0
  – Navigation System Professional ECE / US
• 00A1 – Navigation System Professional
  Asia
• 00E5 – ///M
  Laptimer
• 00F0 – ID4 Navigation
  Enabler
• 0143 – ID5/6 Apple
  CarPlay
• 016E – ID5/6 Speech
  NLU
• 016F – ID5/6 Speech
  TTS

ID4

• 00F1 – European Map
• 00F2 – Taiwan
  Map
• 00F3 – Korea Map
• 00F4 – Japan
  Map
• 00F5 – North America Map
• 00F6
  – China / HK / Macau Map
• 00F7 – Australia / New Zealand
  Map
• 00F8 – Middle East Map
• 00F9 –
  North Africa Map
• 00FA – South Africa Map
• 00FB – Southeast Asia Map
• 00FC – South
  America Map
• 00FD – India Map
• 00FE
  – Israel Map
• 00FF – Turkey Map
• 0100 – Argentina
  Map

ID5

• 0120 – European Map
• 0121 – North America
  Map
• 0122 – Turkey Map
• 0123 –
  Chine / HK / Macau Map
• 0124 – Australia / New Zealand
  Map
• 0125 – Middle East Map
• 0126 –
  North Africa Map
• 0127 – South Africa Map
• 0128 – Southeast Asia Map
• 0129 – South
  America Map
• 012A – India Map
• 012B
  – Israel Map
• 012C – Argentina Map
• 012D – Taiwan Map
• 012E – Korea
  Map
• 012F – Japan
  Map

Brief Introduction to the
System Disclaimer
BMW and MINI have registered trademarks of Bayerische Motoren Werke AG. The
SmartBimmer Tool is not affiliated with BMW AG in any way and is not
authorized by BMW AG to act as an official distributor or representative. We
are Independent BMW geeks and not part of BMW AG in any way.
